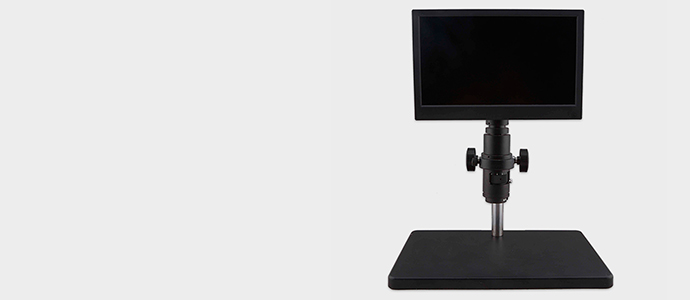

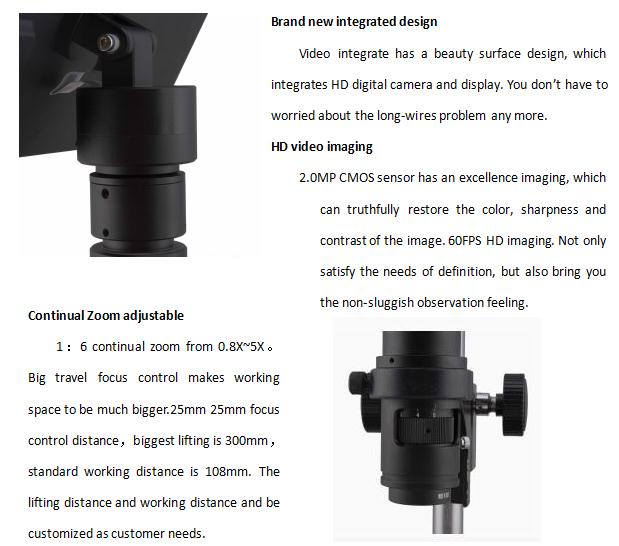

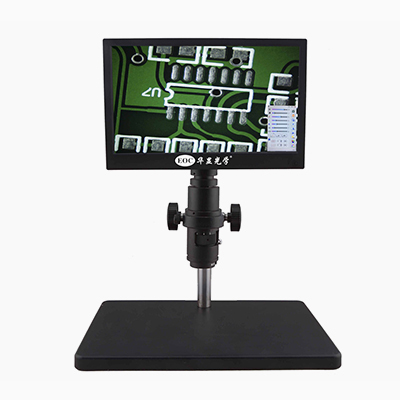

L-200 HD Microscope has a high performance about HD observiing and real time image acquisition function. EOC develops in combination as user needs. The Zoom Radio is 1:6, which has a best optical performance. Optical image suppresion reflexing and contour enhancement function. Greatly increase the color reduction ability, the imaging is more delicate and clearer. It use a ultrathin full view imported LCD display, fastener and high brightness LED light source, lntegrated fuselage design, realizing omnidirectional observation and real time image storage. Efficient and intergrated fuselage designs have a real-time optical magnified observation, flatness comparing, image freeze/storage function, standard measurement, dot/surface/line/circle fast measurement, widely usus in online inspection and quality analysis.
Measurement function
contact
> Fill out this form
Related Products
L-200 HD Microscope has a high performance about HD observiing and real time image acquisition function. EOC develops in combination as user needs. The Zoom Radio is 1:6, which has a best optical performance. Optical image suppresion reflexing and contour enhancement function. Greatly increase the color reduction ability, the imaging is more delicate and clearer. It use a ultrathin full view imported LCD display, fastener and high brightness LED light source, lntegrated fuselage design, realizing omnidirectional observation and real time image storage. Efficient and intergrated fuselage designs have a real-time optical magnified observation, flatness comparing, image freeze/storage function, standard measurement, dot/surface/line/circle fast measurement, widely usus in online inspection and quality analysis.
Measurement function
|
Specification |
|
|
Optical Magnification |
0.7X~5X |
|
CCD Tube |
0.5X （1X） |
|
Video Zoom |
15X-200X 64X~410X（32X~205X） 35X~228X（17.5X~114X） |
|
Monitor size |
11.6 inch |
|
Working distance |
108mm |
|
Optical system |
EOC infinity optical system,coaxial confocal, magnification limited device |
|
Pixel |
2.0MP |
|
Resolution Frame rate |
1920 X 1080 60/FPS |
|
White balance |
One key / Manual |
|
Controur enhancement |
4 stages regulation |
|
Suppress strong light |
4 stages regulation |
|
Color |
Color/ Black&White |
|
Memory function |
SD card（max 32G），online picture preview |
|
Illumination |
Vertical high brightness LED illumination (UP and Down LED can choose) |
|
Measurement |
Plane measurement function, Point/Surface/Line/circle/distance |
|
Standard Base
(other selection) |
Stand Bar frame(Black), base is 380x260x20mm, Lifting 300mm, Focus range 60mm. |
|
Stand Arm frame(White), Base is 318x308x16mm, Lifting range is 160mm |
|
